Advanced Archive – Domino Mailbox Archiver

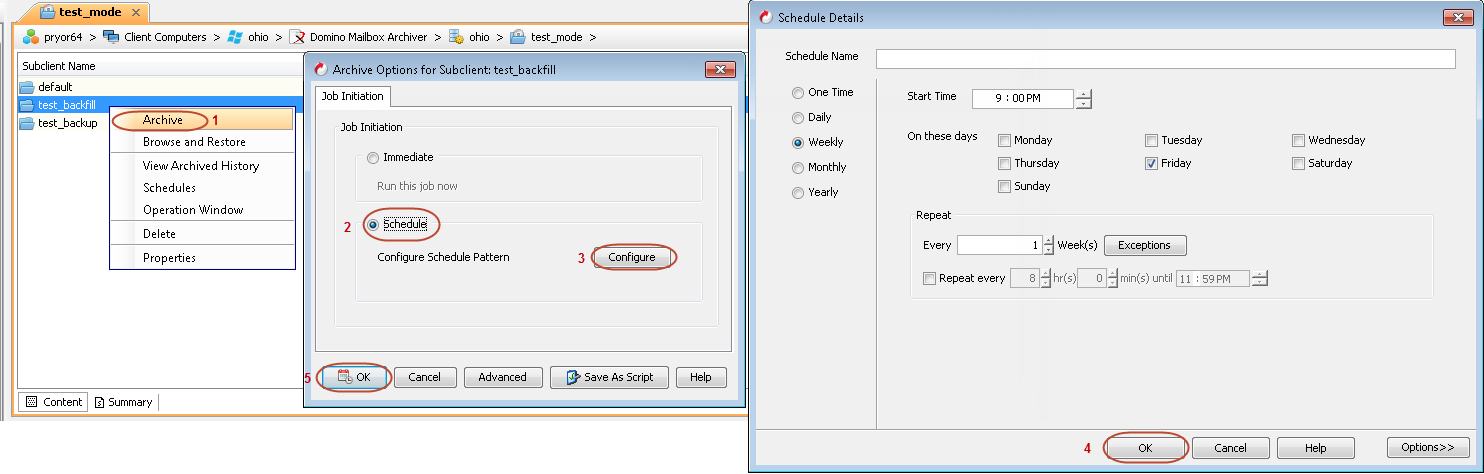

Schedule an Archive Job

To schedule an archive job, follow the steps:

  1. From the CommCell Console, navigate to <Client> | Domino Mailbox Archiver

  2. Right-click the Subclient and click Archive

  3. Click Schedule

  4. Click Configure

  5. Select Schedule Options. For example:

    Click Weekly

    Check the days you want the run the archive job

    Change the Start Time to 9:00 PM

    Click OK to close the Schedule Details dialog box

    Click OK to close the Archive Options dialog box

    schedule - imagesklzzwxh:0239rchiveklzzwxh:0240omino_mailboxklzzwxh:0241chedule.png

The archive job will execute as per the schedule.

Managing Jobs

The following sections provide information on the various options available for job management.

Restarting Jobs

Jobs that fail to complete successfully are automatically restarted based on the job restartability configuration set in the Control Panel.

Changes made to this configuration will affect all jobs in the entire CommCell.

To configure the job restartability for a specific job, you can modify the retry settings for that job. This will override the setting in the Control Panel. It is also possible to override the default CommServe configuration for individual jobs by configuring retry settings when initiating the job. This configuration, however, will apply only to the specific job.

Note

Backup jobs for this Agent are resumed from the point-of-failure.

Configure Job Restartability at the CommServe Level

  1. From the CommCell Console ribbon, click the Home tab, and then click Control Panel.

  2. Under Data, click Job Management.

    The Job Management dialog box appears.

  3. Click the Job Restarts tab.

  4. From the Job Type list, select the appropriate item.

  5. Select the Restartable check box to make the job restartable.

  6. In the Max Restarts box, change the maximum number of times the Job Manager will try to restart a job.

  7. In the Restart Interval (Mins) box, change the time interval between attempts for the Job Manager to restart the job.

  8. Click OK.

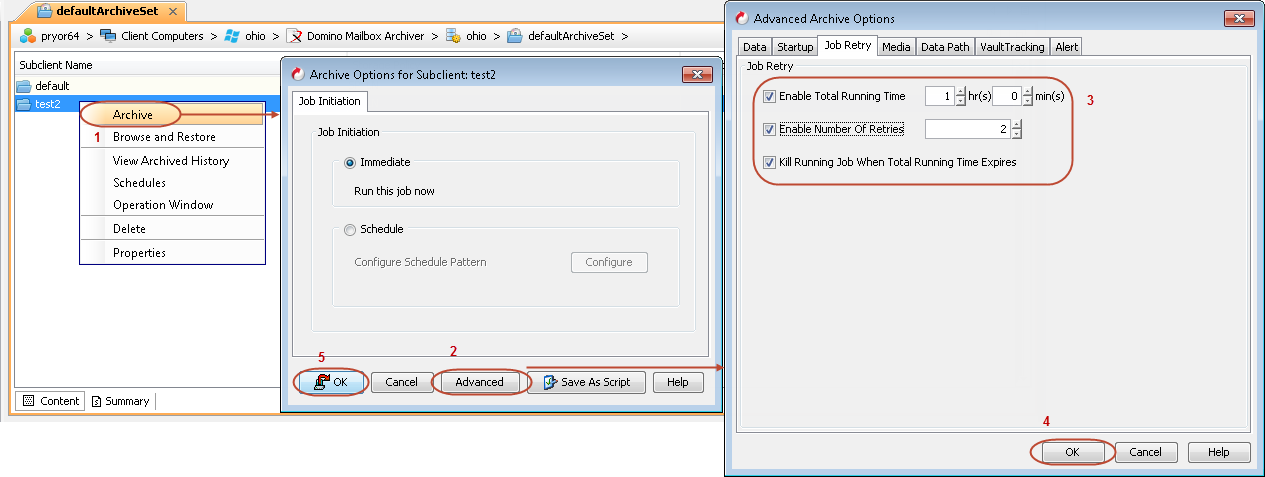

Configure Job Restartability for an Individual Job

  1. From the CommCell Console, navigate to <Client> | Domino Mailbox Archiver.

  2. Right-click the Subclient and select Archive.

  3. Click Advanced.

  4. In the Advanced Archive Options dialog box, click the Job Retry tab.

  5. Select Enable Total Running Time and specify the maximum elapsed time before a job can be restarted or killed.

    Select Kill Running Jobs When Total Running Time Expires to kill the job after reaching the maximum elapsed time.

  6. Select Enable Number Of Retries and specify the number of retries.

  7. Click OK.

    job retry - archiveklzzwxh:0203omino_mailboxklzzwxh:0204ob_retry.png

Controlling Jobs

The following controls are available for running jobs in the Job Controller window:

Suspend

Temporarily stops a job. A suspended job is not terminated; it can be restarted at a later time.

Resume

Resumes a job and returns the status to Waiting, Pending, Queued, or Running. The status depends on the availability of resources, the state of the Operation Windows, or the Activity Control setting.

Kill

Terminates a job.
Suspending a Job

  1. From the Job Controller of the CommCell Console, right-click the job and select Suspend.

  2. The job status may change to Suspend Pending for a few moments while the operation completes. The job status then changes to Suspended.

Resuming a Job

  1. From the Job Controller of the CommCell Console, right-click the job and select Resume.

  2. As the Job Manager attempts to restart the job, the job status changes to Waiting, Pending, or Running.

Killing a Job

  1. From the Job Controller of the CommCell Console, right-click the job and select Kill.

  2. Click Yes when the confirmation prompt appears if you are sure you want to kill the job. The job status may change to Kill Pending for a few moments while the operation completes. Once completed, the job status will change to Killed and it will be removed from the Job Controller window after five minutes.

Additional Options

Several additional options are available to further refine your backup operations. The following table describes these options, as well as the steps for configuring them.

Be sure to read the overview material referenced for each feature prior to using them.

Option

Description

Related Topics

Startup Options

  1. The Job Manager will use the startup priority setting when allocating the required resources. This is useful if you have jobs that are very important and must complete, or jobs that can be moved to a lower priority. From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  2. Right-click the Subclient and click Archive.

  3. From the Archive Options window, click Advanced.

  4. Select Startup.

  5. Select Default Priority. You can select Change Priority for a job, between 0 (highest priority) and 999 (lowest priority).

  6. Select Start up in suspended State to specify the selected job to start in the Job Controller in a suspended state.

  7. Click OK.

Refer to Job Priority and Priority Precedence.

Job Retry Options

  1. The Job Retry option helps in configuring the retry behavior of the backup jobs. You can specify the maximum elapsed time before a job can be restarted or killed and the maximum number of restart attempts. From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  2. Right-click the Subclient and click Archive.

  3. From the Archive Options window, click Advanced.

  4. Select Job Retry.

  5. Select Enable Total Running Time and specify the maximum elapsed time in hours and minutes.

  6. Select Number Of Retries and specify the number of retries. Based on this number, the Job Manager attempts to restart the job.

  7. Select Kill Running Jobs When Total Running Time Expires. The job will be killed when the job is still in running status even after reaching the maximum elapsed time.

  8. Click OK.

Refer to Job Management.

Start New Media

The Start New Media option helps in starting the backup/archive operation on a new media.

This media management feature provides a degree of control over where the data physically resides.

  1. From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  2. Right-click the Subclient and click Archive.

  3. From the Archive Options window, click Advanced.

  4. Select Media.

  5. Select Start New Media.

  6. Click OK.

Refer to Start New Media.

Mark Media Full

  1. The Mark Media Full on Success option marks the Media as Full, 2 minutes after the successful completion of the backup/archive. This feature prevents any other data being written to the same media. From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  2. Right-click the Subclient and click Archive.

  3. From the Archive Options window, click Advanced.

  4. Select Media.

  5. Select Mark Media Full on Success.

  6. Click OK.

Refer to Export Media.

Allow Other Schedules To Use Media Set

  1. The Allow Other Schedules to use Media Set option allows jobs that are part of the schedule or schedule policy and using the specific storage policy to start a new media. It also prevents other jobs from writing to the same set of media. From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  2. Right-click the Subclient and click Archive.

  3. From the Archive Options window, click Advanced.

  4. Select Media.

  5. Select Allow Other Schedules To Use Media Set.

  6. Click OK.

Refer to Creating an Exportable Media Set.

Extend Job Retention

  1. This option allows you to extend the retention end time of the selected job. You can extend the retention period to infinite period or for a specified number of days. You can also extend to storage policy default period. From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  2. Right-click the Subclient and click Archive.

  3. From the Archive Options window, click Advanced.

  4. Select Media.

  5. Select any of the following Extend Job Retention period options: Infinite/Number of days/Storage Policy default.

  6. Click OK.

Data Path Options

Data Protection operations use a specific data path (Library, MediaAgent, Drive Pool, and Drive) to perform the backup operations as configured in the CommCell. By default, the system automatically identifies the data path for the backup operations.
The following are some of the important situations where you may need to change the data path:

  • When the preferred MediaAgent, library or drive pool is not available during the backup

  • When you need to use a different MediaAgent, library or drive pool for load balancing purposes.

  • When you need to direct that backup to a particular location for compliance purposes.

  • From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  • Right-click the Subclient and click Archive.

  • From the Archive Options window, click Advanced.

  • Select Data Path.

  • Select the MediaAgent and Library.

  • Select the Drive Pool and Drive for tape library.

  • Click OK.

Refer Change Data Path.

Vault Tracker

The Vault Tracker feature provides the facility to manage media that are removed from a library and stored in offsite locations. The Vault Tracker function provides the following capabilities in your day-to-day operations:

  • Identifies media that must be sent off-site for storage or brought back from off site locations.

  • Automatically moves the media in sequence in the library and provides a pick-up list for the operators.

  • Identifies and tracks the media during transit.

  • Records and tracks the movement of media not used by all MediaAgents or Foreign Media.

  • From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  • Right-click the Subclient and click Archive.

  • From the Archive Options window, click Advanced.

  • Select Vault Tracking.

  • Select the necessary options.

  • Click OK.

Refer to Vault Tracker or Vault Tracker Enterprise.

Alerts

  1. The Alert option is used for setting up the criteria to raise notifications/alerts for job statuses such as failure, success, or any other conditions triggered by the backup job. Adding alerts helps the user or the user group to get the notification automatically about the status of the backup job. From the CommCell Browser, navigate to Client Computers | <Client> | Agent | Archive Set.

  2. Right-click the Subclient and click Archive.

  3. From the Archive Options window, click Advanced.

  4. Select Alert.

  5. Click Add Alert.

  6. From the Add Alert Wizard window, select the Threshold and Notification Criteria. Click Next.

  7. Select the Notification Types. Click Next.

  8. Select the Users and User Groups. Click Next.

  9. Verify the Summary.

  10. Click Finish.

  11. Click OK.

Refer to Alerts and Notifications.

Command Line Backups

Command Line Interface enables you to perform backups from the command line. The commands can be executed from the command line or can be integrated into your own scripts or scheduling programs. In addition, you can also generate scripts for specific operations from the CommCell Console using the Save As Script option. These scripts can later be executed using the commands from the command line interface.

Refer to Command Line Interface.

CommCell Readiness Report

The CommCell Readiness Report provides you with vital information about the condition of your CommCell.

Refer to CommCell Readiness Report.

Backup Job Summary Report

The Backup Job Summary Report provides the details of all the backup jobs of clients.

Refer to Backup Job Summary Report.
×
