C-Mode Filer Configuration

Use the following steps to configure the NetApp C-mode file server and archive your data.

Obtain the following users or roles from the NetApp Administrator:

Impersonate NT User on the Proxy Server

You must have an account that is a Local Administrator on each proxy server. This account must also be part of the domain as that of the NetApp file server whose data is to be archived.

The login credentials that you provide must be added to the:

Local administrators group on the proxy computer.
Use the same credentials for all subclients created on your CommCell Console. For C-mode, if you plan to use different credentials, the user must have privileged access permissions on the vserver.

Use the following command to verify if the user has privileged access:

vserver_name::> fpolicy policy show -vserver <vserver_name> -instance

Example

nacluster1::> fpolicy policy show -vserver nac1vs4 -instance

Vserver name: nac1vs4

Policy: CVNSDM

Events to Monitor: CVNSDMEvent, CVNSDMEVENT_NFS_V3,

CVNSDMEVENT_NFS_V4

FPolicy Engine: CVNSDMEXTERNALENGINE

Is Mandatory Screening Required: true

Allow Privileged Access: yes

User Name for Privileged Access: testlab\admin

Is Passthrough Read Enabled: false
Make sure that the impersonate user credentials has read and write permissions to the data residing on the CIFS share.

For C-mode, make sure that there are no mapped network drives on the proxy computer to the vserver or CIFS share. You can use the "net use" command to confirm if the service accounts has mounts to other vservers. If there are any other mounts to this vserver, they must be disconnected.

VSADMIN Role User

You must have a user account with VSAdmin role and ONTAPi/ssh application.

nacluster1::> security login create -vserver <vserver_name> -user-or-group-name abc -application ontapi -authmethod password

Please enter a password for user '<username>':

Please enter it again:

nacluster1::> security login create -vserver <vserver_name> -user-or-group-name abc -application ssh -authmethod password

NDMP User

Contact the NetApp administrator to determine the appropriate password on the vserver where NDMP credentials are required.

Run the following command to enable NDMP on the file server.

vserver services ndmp on -vserver <vservername>

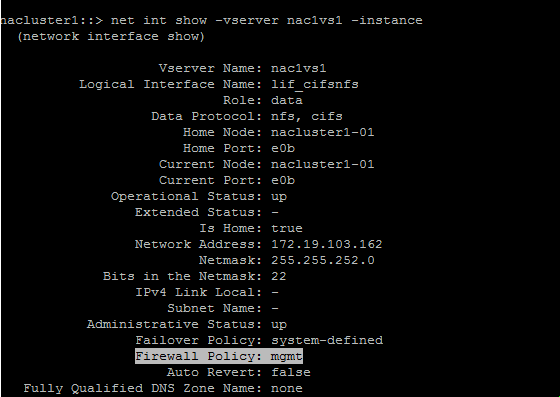

Run the following command to verify if the vserver interface has management access:
```

net int show –vserver vservername –lif -logical_interface_name
```

file_server_mgmt_access

Outgoing Tunnel, Routes, and Firewall Configuration

If firewall is configured between the proxy computer and the NetApp file server, then the required ports must be open such that you must be able to ping the vserver.

In order to maintain the connections for recall operations, the Commvault administrator must make sure that the media servers have outgoing tunnels and routes to each of the Windows Proxy Servers else the recall operation may hang and the connection is dropped. To verify if the tunnels and outgoing routes are configured correctly, right click each Windows Proxy Server and check Properties > Network > Summary.

Step 2: Verify the File Server Registration

Run the following command on the file server to verify the proxy computers registered to the vserver:
```

nacluster2::security login> fpolicy show-engine -vserver $[vserver_name]
```
