Frequently Asked Questions for the NetApp Storage Array

How do I enable REST API based authorization?

• To enable REST API based authorization to the cluster array, run the following commands:

  vserver services web access show -vserver vserver -name rest -role role

  vserver services web access create -vserver vserver -name rest -role role

How do I enable SnapDiff V2 or SnapDiff V3 for Snapshot Cataloging or Backup Copy?

Configuration Requirements for SnapDiff V2

1. Verify RPC is enabled on the vServer being cataloged or backup copied. Even if a cluster client is being cataloged, the vServer for the volume being cataloged or backup copied must have RPC enabled. On the file server, verify RPC is enabled on the vServer using the following commands:

   set advanced

   vserver snapdiff-rpc-server show -vserver vserver

   vserver snapdiff-rpc-server on -vserver vserver

2. Verify whether an NFS interface exists between the vServer and the Commvault MediaAgent. Specifically, confirm that there exists a vServer NFS interface on the file server node containing the volume being cataloged using the following commands:

   vserver nfs show -vserver vserver

   network interface show -vserver vserver -data-protocol nfs

Configuration Requirements for SnapDiff V3

1. Verify RPC is enabled on the vServer being cataloged or backup copied. Even if a cluster client is being cataloged, the vServer for the volume being cataloged or backup copied must have RPC enabled. On the file server, verify RPC is enabled on the vServer using the following commands:

   set advanced

   vserver snapdiff-rpc-server show -vserver vserver

   vserver snapdiff-rpc-server on -vserver vserver

2. Verify whether an NFS interface exists between the vServer and the Commvault MediaAgent. Specifically, confirm that there exists a vServer NFS interface on the file server node containing the volume being cataloged using the following commands:

   vserver nfs show -vserver vserver

   network interface show -vserver vserver -data-protocol nfs

3. Verify that the cluster array login is authorized for REST, HTTP, and SSL. For more information on setting up a NetApp cluster login.

   1. To enable REST API based authorization to the cluster array, run the following commands:

      vserver services web access show -vserver vserver -name rest -role role

      vserver services web access create -vserver vserver -name rest -role role

   2. To enable HTTP and SSH based authorization to the cluster array, run the following commands:

      security login show -vserver vserver -user-or-group-name user -application $[http$

      security login create -vserver vserver -user-or-group-name IntelliSnapUser -application http -authentication-method password -role role

      security login show -vserver vserver -user-or-group-name user -application ssh

      security login create -vserver vserver -user-or-group-name IntelliSnapUser -application ssh -authentication-method password -role role

   3. To enable the SnapDiff and license APIs for the cluster array, run the following commands:

      security login role show -vserver vserver -role role -cmddirname "snapdiff"

      security login role create -vserver vserver -role role -cmddirname "snapdiff" -access all

      security login role show -vserver vserver -role role -cmddirname "license"

      security login role create -vserver vserver -role role -cmddirname "license" -access all

Can I create additional provisioning policies for secondary copies and use them for IntelliSnap?

Yes, you can create additional provisioning policies for secondary copies for the OnCommand Unified Manager. The IntelliSnap feature can use provisioning policies prefixed by “SnapProtect_” (case insensitive) in storage policy copies.

Can I use a non-root user to configure an array or NDMP?

You can use a non-root user for array configuration and NDMP configurations.

7-Mode

For the 7-Mode system, configure the array with a non-root user with the following commands:

• To create IntelliSnap role with proper rights:


  NetApp1> useradmin role add  $[Intellisnap Role] -c ”[$[IntelliSnap Management Role]]" -a login-ndmp,login-http-admin,api-*

  Example:


  NetApp1> useradmin role add  IntelliSnap Role -c ”SP Mgmt Role" -a login-ndmp,login-http-admin,api-*

• To add a role to the newly created IntelliSnap group:


  **NetApp1> useradmin group add  Intellisnap group -c ”IntelliSnap Management Group]" –r  Intellisnap Role

  Example:


  NetApp1> useradmin group add  Intellisnap group -c ”SP Mgmt Group" –r Intellisnap Role

• To create a user for the array credential in the Commvault Control Panel.


  NetApp1> useradmin user add  $[Intellisnap user] -c ”[$[IntelliSnap Management Account]]" -n ”$[S Admin]" –g  $[IntelliSnap Group]

  Example:


  NetApp1> useradmin user add  Intellisnap user -c ”SP Mgmt Account" -n ”S Admin" –g  IntelliSnap Group

• To configure NDMP with the same credentials, follow the steps below:

  1. Retrieve the encrypted password for the IntelliSnapuser that you added in the previous commands with the following command.


     NetApp1> ndmpd password Intellisnap user

  2. In the NDMP Server Properties dialog box, in the NDMP Login and NDMP Password boxes, type the IntelliSnapuser and password.

C-Mode

Cluster Vserver

For the C-Mode system, to configure the array with a non-root user, type the following commands on the cluster Vserver only:


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "metrocluster vserver show" -access readonly


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "metrocluster show" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "fcp portname" -access readonly


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver fcp show" -access readonly


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "storage aggregate show" -access readonly


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver show" -access readonly

security login role create -vserver vserver_name -role IntelliSnapRole -cmddirname "license" -access all

security login role create -vserver vserver_name -role IntelliSnapRole -cmddirname "snapdiff" -access all
security login role create -vserver vserver_name -role IntelliSnapRole -cmddirname "snapdiff" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver" -access readonly


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "job show" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "lun" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "network interface" -access readonly


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "snapmirror" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "version" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "volume" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "volume efficiency" -access none


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "volume move" -access none


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver cifs" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver export-policy" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver fcp" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver fpolicy" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver iscsi" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver nfs" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver services ndmp" -access all


security login create -user-or-group-name IntelliSnap User -application ontapi -authmethod password -role IntelliSnap Role -vserver vserver_name


security login create -user-or-group-name IntelliSnap User -application ssh -authmethod password -role IntelliSnap Role -vserver vserver_name

security login create -vserver vserver_name -user-or-group-name IntelliSnapUser -application http -authentication-method password -role IntelliSnapRole

vserver services web access create -vserver vserver_name -name rest -role IntelliSnapRole

security login unlock -username IntelliSnapUser -vserver vserver_name

Vserver

For the C-Mode system, to configure the array with a non-root user, type the following commands on the Vserver only:


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver" -access readonly


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "job show" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "lun" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "network interface" -access readonly


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "snapmirror" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "version" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "volume" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "volume efficiency" -access none


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "volume move" -access none


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver cifs" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver export-policy" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver fcp" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver fpolicy" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver iscsi" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver nfs" -access all


security login role create -vserver vserver_name -role IntelliSnap Role -cmddirname "vserver services ndmp" -access all


security login create -user-or-group-name IntelliSnap User -application ontapi -authmethod password -role IntelliSnap Role -vserver vserver_name


security login create -user-or-group-name IntelliSnap User -application ssh -authmethod password -role IntelliSnap Role -vserver vserver_name

security login create -vserver vserver_name -user-or-group-name IntelliSnapUser -application http -authentication-method password -role IntelliSnapRole

vserver services web access create -vserver vserver_name -name rest -role IntelliSnapRole

security login unlock -username IntelliSnapUser -vserver vserver_name

What account types and roles should I set for the Cluster Mode operating system?

Add a user in the Array Management credentials with ontapi and ssh roles. Add the cluster in Array Management and then SVMs are detected and added from the cluster client.

For more information on the configuration of NetApp clusters, see Configuring Storage Virtual Machines on NetApp Arrays.

How do I verify that the destination filer has SnapMirror access to the source filer?

To ensure that SnapMirror jobs run, the destination filer must have SnapMirror access to the source filer. If the name or IP address of the SnapMirror filer appears in "/etc/snapmirror.allow", then the destination filer has access.

For more information on SnapMirror options, refer to the NetApp Support documentation - SnapMirror options.

Alternatively, you can go into each of the hosts in OnCommand Unified Manager and configure the proper security rights for source and destination in the Fabric-Attached Storage settings.

How does the SnapMirror process work?

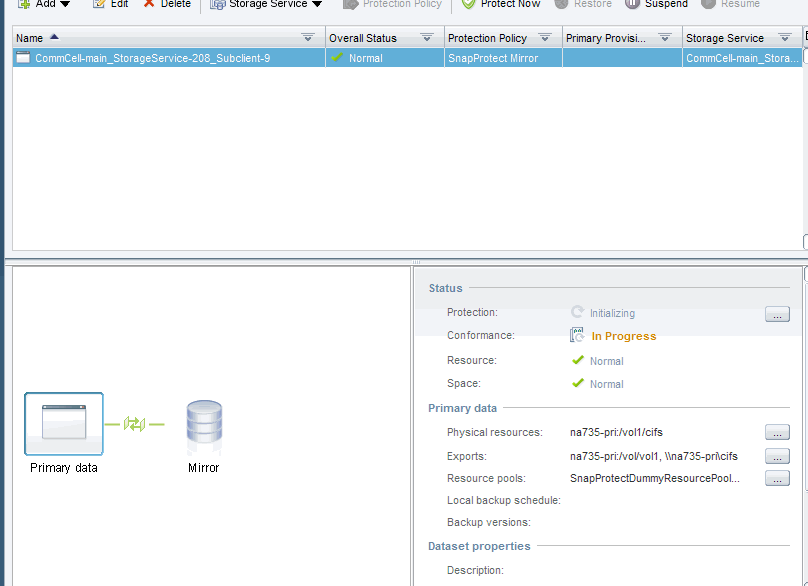

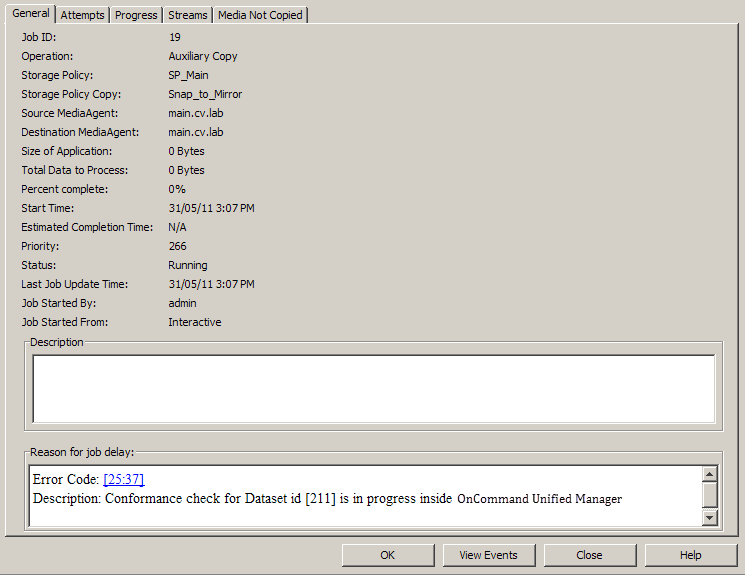

1. To get the full, detailed Snap Management plan so that SnapMirror/SnapVault can run, NetApp runs a conformation check during the first auxiliary copy job.

   • On NetApp



   • On Commvault

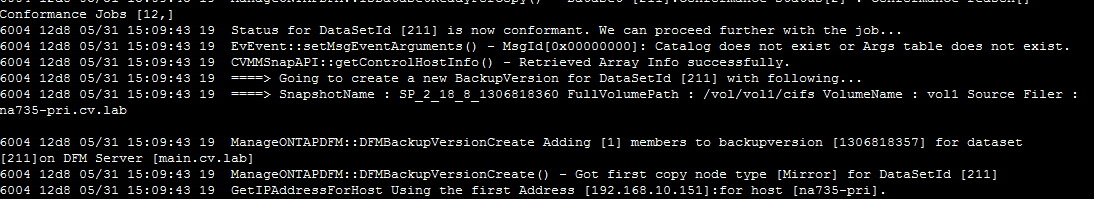

2. During each SnapMirror auxiliary copy job, SnapMirror creates a “BackupVersion," which is a new Snapshot of the entire volume that requires replication.

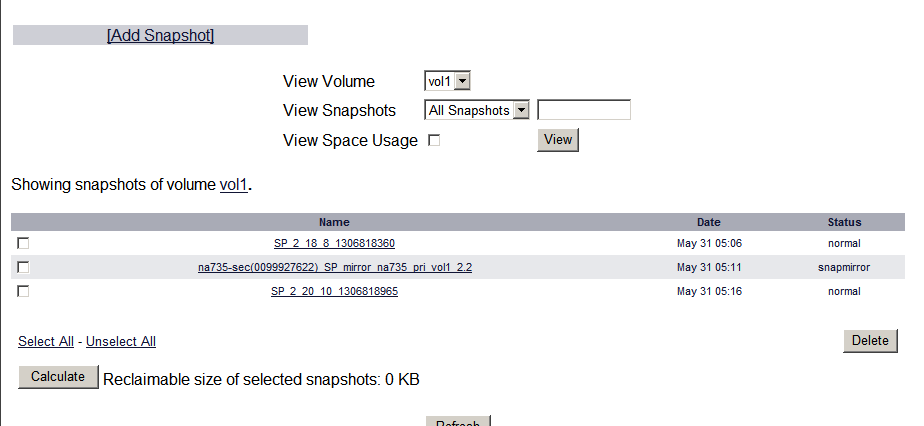

3. Once a new Snapshot for SnapMirror is available, the Snapshot is listed under the volume on the Primary Filer.

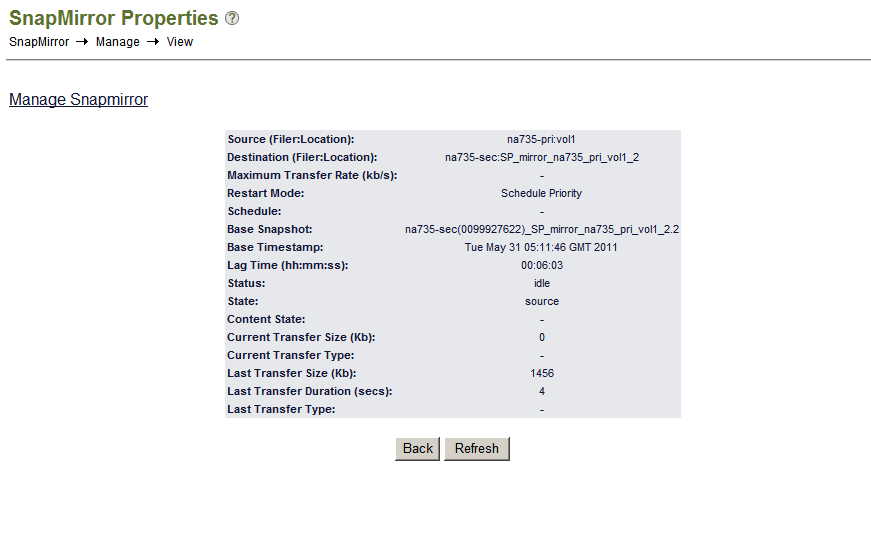

4. The new Snapshot also appears in the current SnapMirror session.

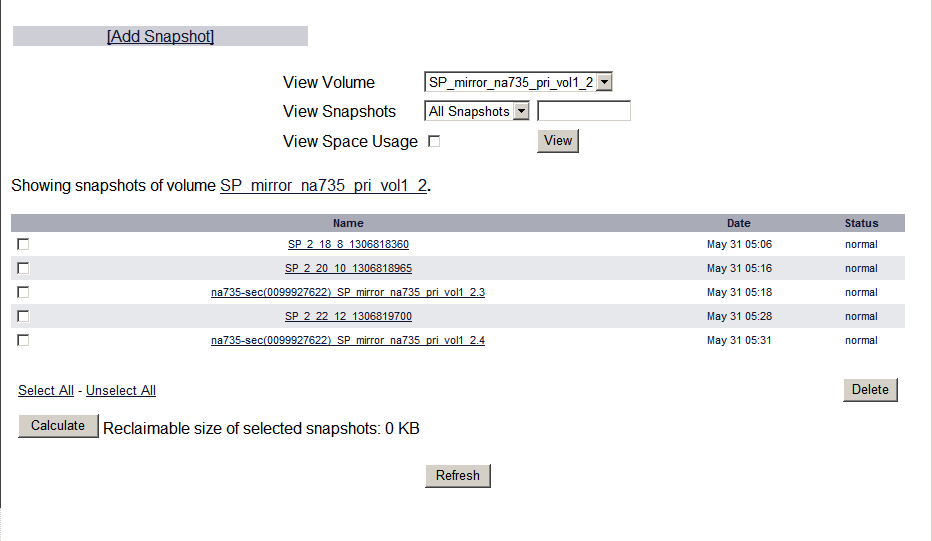

5. On the destination filer site, the same Snapshot appears. In addition, if there were any previous SnapMirror on-demand jobs run, only the very last one remains on the target box.

   NetApp calls this a “Swizzling Process”. That is, the primary Fabric-Attached Storage (FAS) creates a delta set between the original snapshot used from the previous SnapMirror job and the new snapshot created for the current SnapMirror job. Only the details of the snapshot and the deltas are sent to the destination FAS, and refer to the previous snapshot, which was formerly the target SnapMirror session. The volume is updated to match what is in the primary FAS. The previous snapshot is not deleted because the entire process is a background job.



How does data aging work with SnapMirror?

In Commvault, if an IntelliSnap job on a storage policy copy with SnapMirror capabilities is data-aged, the job is removed from the snapshots list. For information on viewing the snapshots for an agent, or snapshot copy, see List Snapshots.

The data-aging process does not physically delete the snapshot taken by the IntelliSnap job from the SnapMirror volume on the file server. Snapshots from jobs that have been data-aged are physically deleted only when you perform an auxiliary copy to the SnapMirror node.

Can I disable tunneling for a storage virtual machine?

Yes. If you want to disassociate a particular Storage Virtual Machine from a NetApp array, then you can turn off the tunneling option.

All jobs scheduled through the array no longer run for the disassociated Storage Virtual Machine.

To turn off tunneling:

1. Log into CommCell Console.

2. Click the Storage tab, and then click Array Management.

3. Select the Storage Virtual Machine for which you want to turn tunneling off, and then click Edit.

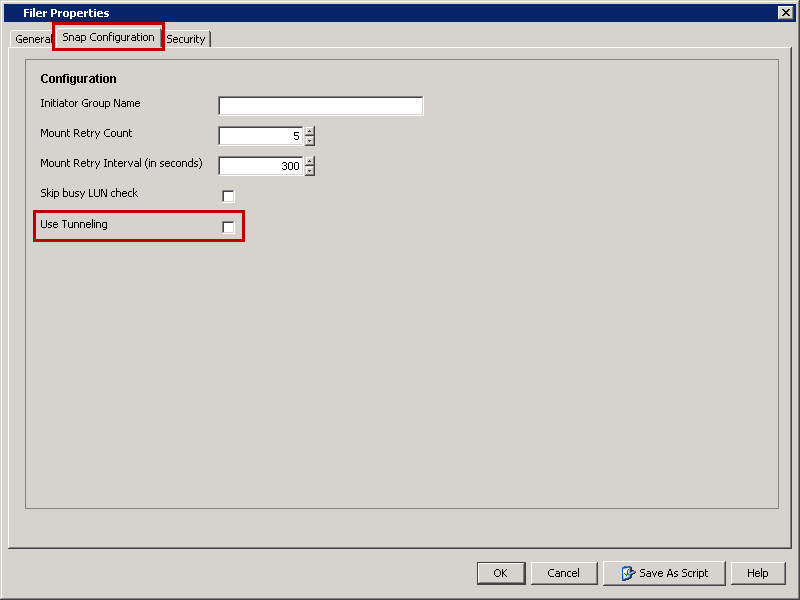

4. Click the Snap Configuration tab, clear Use Tunneling, and then click OK.

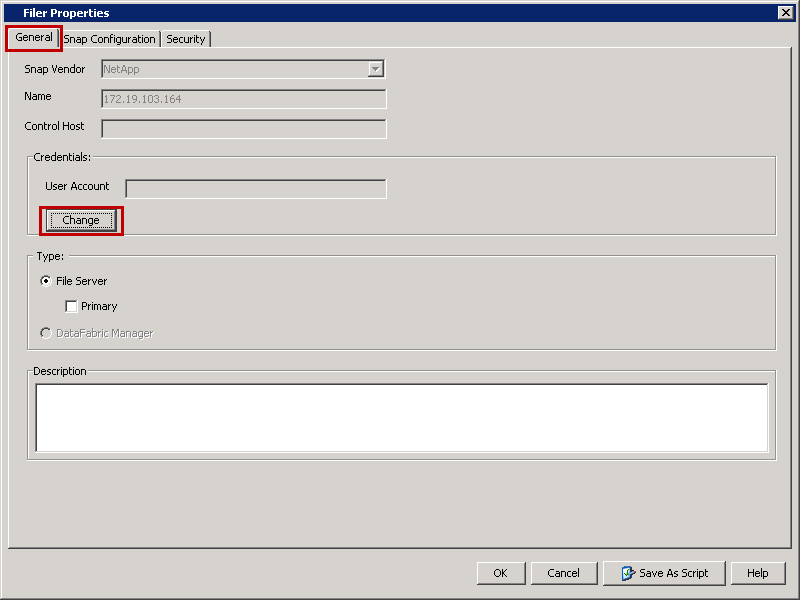

5. Click the General tab, and then under Credentials, click Change.



6. In the User Name and Password boxes, enter the NDMP credentials, and then click OK.



7. Click OK to close the Filer Properties dialog box.

8. Click OK to close the Array Management dialog box.

How do I select vFiler as the destination for secondary (vault or mirror) copy?

1. Create resource pool with physical filer and not aggregate as resource pool member.

2. When creating secondary snapshot copy, then

   Select the resource pool(s) created in (1), and

   Enable the "Select vFiler" option and select the required vFiler from the dropdown list.

Can the data on SharePoint Server be restored from the content databases on the SQL Server configured to use NetApp IntelliSnap?

Offline browse and restore for SharePoint 2010 and later is supported on NetApp by using IntelliSnap- SQL Server iDataAgent. The following are the prerequisites to using this feature:

• The source client machine must have Microsoft SQL Server with an attached Content Database. This can be configured using any one of the following methods:

  Configuring clone for the database

  Mount Snapshots

  Perform an Out-of-Place Restore

  Restore to Disk

  Database Restore

• The destination client machine must have SharePoint Server iDataAgent installed.
