The Cloud Metrics Reporting feature collects data from the CommCell environment. The data is uploaded to the Cloud Metrics Reporting Server and is processed to display reports based on the data on the Cloud Service Portal.

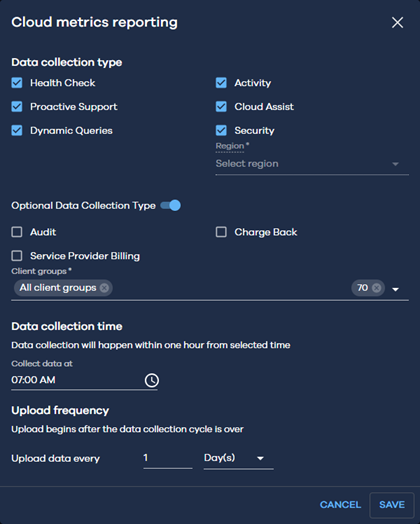

The following are the data collection types that are available in the Cloud Metrics Reporting:
General
When the user configures the Cloud Metrics Reporting, the following queries collects data about CommServe details, software version, and subclients status.
Note
Any personal information related to an individual or organization will not be collected with the data collection.
|
Data to be Collected |
Description |
|---|---|
|
License Usage |
The information about the total and used licenses capacity. |
|
CommServe Details |
The information about the CommServe configuration details. |
|
Agent Capacity License Usage |
The information about the Capacity Usage and License Usage counts per agent. |
|
Snap Engine Usage |
The information about the snap usage. |
|
Client Statistics |
The number of clients and laptops configured in the CommCell environment. |
|
Subclient Policies Count |
The number of subclient policies and associated backup sets. |
|
Get Job information after reconstructed job |
The information about the jobs that were written using DDB that were reconstructed recently. |
|
Software Version |
The information about the CommServe update cache and CommServe install information. |
|
DeDup Backup Stores Report |
The information about the storage policies and copies which are not backed up by DDB backup subclient. |
|
DDB Store Usage per Media Agent |
The information about the dedup store usage Media Agent. |
|
Backup Job Statistics for last 60 days |
The information about the status of backup jobs in last 60 days. |
|
Subclients Without Schedules |
The information about the subclients without schedule. |
|
Upgrade Check |
The information about backup job status after the software upgrade. |
|
PrePostUpgradeSLA |
The information about the SLA configuration before and after the software upgrade. |
|
Storage Policy Media Type |
The information about the Storage Policy association with Mag and Tape media. |
|
Average Throughput of Jobs in the Last Week |
The information about the average throughput of backup and restore jobs in last week. |
|
CommServe |
The information about the CommServe computer details. |
|
Storage Policy Details |
The information about the storage policy details. |
|
Client Details |
The information about the client details. |
Health Check
The queries that collect data about the wellness of the CommCell, job success, client size, and errors to be collected and displayed in the Health report.
|
Data to be Collected |
Description |
|---|---|
|
Scale Statistics |
The information about the status on jobs completed, jobs load in 24 hours, CSDB size, tempDB size, DDB Performance, etc. |
|
DR Backup Statistics |
The information about the status of the DR backup jobs. |
|
Subclients without Storage Policy Association |
The information about the subclients without Storage Policy Association. |
|
DDB Backups using enhanced process |
The number of Media Agent hosting DDB backups, Media Agents without DDB subclient. |
|
Unused Schedule Policies |
The information about the details of unused schedule policy. |
|
Largest 25 Clients |
The information about the largest 25 clients based on app size, total share, etc. |
|
Long Running Backup Jobs for last 1 day (Top 25 Jobs) |
The information about the top 25 jobs that run more than 12 hours. |
|
Strike Count |
The information about the strike count due to failing of jobs. |
|
Deduplication Ratio For The Last 30 Days |
The information about the dedupe ratio of each storage policy copy based on the hobs in last 30 days. |
|
SLA |
The information about the SLA status of the clients. |
|
Incremental backup change rate for Last 7 days |
The information about the data change rate for the last 1 week. |
|
Clients configured but not backed up |
The information about the number of configured clients that were not backed up. |
|
Top 10 Errors in last 24 hours |
The information about the top 10 errors occurred in the CommCell over last 24 hours. |
|
DR Backup |
The information about the DR backup status. |
|
Concurrent LAN Backup Settings |
The information about the concurrent LAN optimization. |
|
DASH Option |
The information about the Dash optimization. |
|
Client Count by Job Priority |
The number of clients based on the job priority. |
|
Deduplication with pending pruning for jobs |
The information about the Dedupe status for pending backup job pruning. |
|
Index Cache Location |
The information about the Media Agent Index cache path. |
|
Protected data per agent for last 7 days |
The information about the data protected by the agents per week. |
|
DDB Partition counts per Media Agent |
The information about the Media Agent dedup partition configuration. |
Activity
The queries that collect data about the CommCell activity and statistics, client status, job activity, and download details and displayed in the Activity report.
|
Data to be Collected |
Description |
|---|---|
|
Largest 25 Clients |
The information about the largest 25 clients based on app size, total share, etc. |
|
Strike Count |
The information about clients that are continuously failing, the last successful job for those clients, last job failure reason, backup type, subclient , instance, backupset information. |
|
Top 10 Errors in last 24 hours |
The information about the top 10 errors occurred in the CommCell over last 24 hours. |
|
Slowest Clients by Throughput |
The top 10 slowest clients by throughput. |
Pro-Active Support and Cloud Assist
The queries that collect data about the troubleshooting information based on log collections and other information on the CommServe database.
|
Data to be Collected |
Description |
|---|---|
|
APSS Solution Workflow |
The information about the WF solutions which are detected and tracked when executed on the CommServe computer. |
|
APSS Health Workflow |
The information about the WF solutions which are detected and tracked when health workflow is executed on the CommServe computer. |
|
APSS Setup |
The configuration of proactive support on the CommServe computer. |
Dynamic Queries
The queries that collect information about the usage and diagnostics of the CommServe computer to evaluate and improve the software.
|
Data to be Collected |
Description |
|---|---|
|
Database Size |
The information about the size of the CommServe database. |
|
Live Sync Usage |
The number of customers using VSA Live Sync feature. |
|
Plan Query |
The information about the usage of different type of plans. |
|
DR Backup Usage Check |
The information about the status of the CommServe based on DR backup location. |
|
Application License Summary Dataset |
The information about the application objects count with the license purchased and usage count. |
|
Feature Usage Offline |
The information about the Commvault feature used in the CommServe computer. |
|
Additional setting detailed listing |
The information about the list of additional settings added in the CommServe computer to enable the particular feature. |
|
Package List |
The information about the location of the packages installed in the CommServe computer. |
|
MAOS List |
The information about the operating systems used for the Media Agent. |
|
Epic backup |
The information about the clients and subclients with the last full EPIC backup. |
|
FS and SQL 2008 Usage |
The information about the Microsoft and SQL server usage. |
|
Primary Backup To Cloud |
The information about the customers using cloud as primary target for backup. |
|
NFS Object Store Stats |
The information about the amount of data sent to the NFS ObjectStore. |
|
Get LSR job enabled |
The information about the CommCell configured with LSR SQL jobs. |
|
Live Sync IO |
The number of LiveSync IO customers. |
|
EndPoint Numbers |
The number of laptop features used in the CommCell environment. |
|
Usage Data |
The information about the usage tracking for O365 apps. |
Security
The queries that collect information about the data anomalies, backup monitor, and other log information.
|
Data to be Collected |
Description |
|---|---|
|
Backup Environment Data |
The information about the data anomalies, backup monitor, and other log information. |
Additional Data Collection Types
Audit
The queries that collect information about the storage policies, Media Agents, and the client configuration to display under the Audit Trail report.
|
Data to be Collected |
Description |
|---|---|
|
Configuration Audit |
The information about the settings that are different from the Commvault default settings. |
|
Storage Policy Audit |
The information about the user selected storage policies that are different from the default. |
|
Media Agent Audit |
The information about the user selected Media Agents that are different from the default. |
|
Library Audit |
The information about the user selected libraries that are different from the default. |
|
CommCell Parameters Audit |
The information about the user selected CommCell parameters that are different from the default. |
|
Tape Media History |
The information about the tape media history. |
|
Client Audit |
The information about the user selected client or subclient properties that are different from the default. |
Service Provider Billing
The queries that collect information about the customer license billing and expiration.
|
Data to be Collected |
Description |
|---|---|
|
Current License Usages |
The information about the current license usage. |
|
SCL License Peak Usages |
The information about the subclient level peak license usage. |
|
Tenants |
The information about the tenants in the CommCell environment. |
|
End Users |
The information about the end users in the CommCell environment. |
|
License workload map |
The information about the workloads associated with each license usage. |
|
Current AD & Azure AD License Usages |
The information about the current AD and Azure AD license usage. |
|
SCL AD & Azure AD License Peak Usages |
The information about the subclient level peak AD and Azure AD license usage. |
Charge Back
The queries that collect information about the daily, monthly, and weekly usage chargeback that is displayed on the Chargeback report.
|
Data to be Collected |
Description |
|---|---|
|
Daily Storage Usage and Chargeback |
The information about the daily storage usage and chargeback. |
|
Monthly Storage Usage and Chargeback |
The information about the monthly storage usage and chargeback. |
|
Weekly Storage Usage and Chargeback |
The information about the weekly storage usage and chargeback. |
|
Subclient Configuration |
The information about the subclient and the storage policy association. |
|
Peak usage details of Commserv |
The information about the peak usage details of the CommServe computer. |
