Configuring an Alert for a Report on the Command Center

You can set an alert for the data that appears in report tables. In most reports, each condition type represents a column that is visible in the table. Just like the columns in reports, the corresponding alert conditions vary per report. Likewise, the value types that you can set vary per condition.

Procedure

  1. From the navigation pane, click Reports.

    The Reports page appears.

  2. Click a report.

  3. At the top-right of the table, click Settings table settings button, and then click Configure alert.

  4. Under General, in the Name box, type a name for the alert.

  5. To specify a severity for the alert, such as Warning or Critical, next to Send Notification With, select a status from the list.

  6. To set an alert based on the information in a column, select the column name, select a condition, and then type a value in the box.

    Values are not case sensitive.

    For example:

    Select Protected Objects, select more than, and then type 100.

  7. To add more alerts based on information in columns, click Add Condition, specify the column name and value, and then choose when to send notifications.

  8. To check the alert conditions you configured, click Test Criteria.

    The results appear in a new tab in your web browser.

    alert general setting

  9. Click Next.

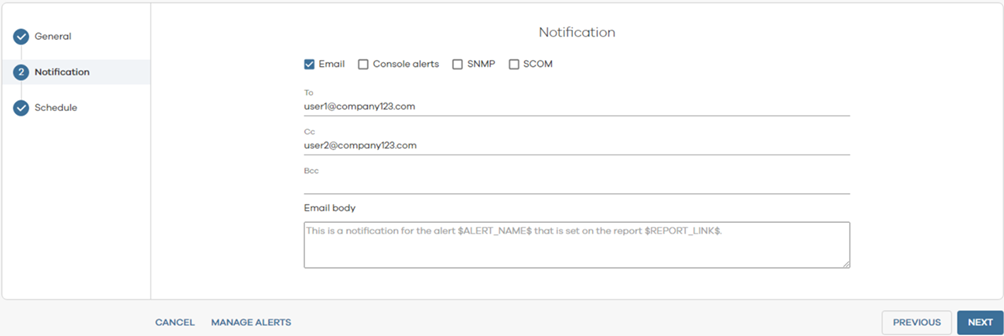

  10. Under Notification, specify the methods for sending alerts:

    • To send the alert in an email, select Email, and in the To, Cc, and Bcc box, type email addresses, and then enter any additional email text in the Email body box.

    • To send the alert through the CommCell Console alerts system, select Console alerts.

    • To send the alert using the Windows Event Viewer, select Windows event viewer, and then in the Description box, configure the alert message.

    Note

    The Event Viewer option cannot be configured for Linux CommServe computer.

    For more information on the alert types, see Alert Types.

    alert notification setting

  11. Click Next.

  12. Under Schedule, in the Time box, select a time.

  13. In the Time Zone drop-down list, select a time zone.

  14. In the Frequency box, select the frequency for sending the alert, such as daily or weekly.

  15. To configure the notification to repeat, select the Repeat check box, select an hour and minute, and in the until box, select a time.

    alert schedule setting

  16. Click Submit.

    When the item reaches the column condition that you specified, a notification is sent using the method that you specified.

Migrate the exisitng Web Console metrics alerts to Command Center

×
