Sophos® Endpoint Security and Control Version 9 Settings for Windows File Archiver

Sophos^® Endpoint Security and Control Version 9 can be configured on the computers that have the Windows File Archiver agent installed. It allows for scanning of processes that are running on the servers. By default these processes are scanned in real-time for known viruses as and when the files are being processed for archiving. The "Scanning Phase" of archiving keeps triggering the scanning process of the antivirus, which is very resource intensive.

However Sophos Endpoint security can be configured to avoid scanning the archived files.

Follow the steps given below to configure the security system to avoid scanning of archived files:

Prerequisite

Before you begin, ensure that the following are enabled:

On Access Scanning

Right-click Scanning

Full Scan

1. On the Task Bar right-click the Sophos Antivirus icon and click Open Sophos Endpoint Security and Control.

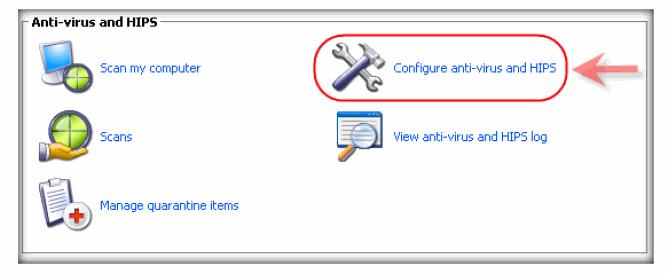

2. Click Configure anti-virus and HIPS.

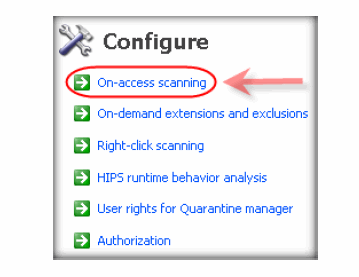

3. Under the Configure section, click On-Access Scanning.

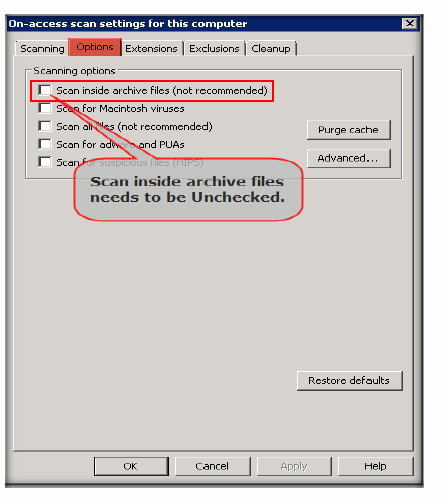

4. Click the Options tab and clear the Scan inside archive files checkbox. Click OK.



Configuring Windows Registry

1. Start the Registry Editor on the computer where the file archiver agent is installed.

2. Navigate to HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\cvmhsm\Parameters\.

3. Right-click Parameters, point at New and click String Value.

4. In the Value Name box type ExcludeProcessX.

   Where X is the next consecutive number in the list (i.e. ExcludeProcess1, ExcludeProcess2, etc.)) for any process that should not initiate recalls.

   All ExcludeProcess names must be truncated to a maximum 15 character string value or the Windows OS Kernel Mode will not process the exclusion properly. This would result in the exclusion being ignored, unexpected recalls occurring and other unexplained stub activities.

   For example:

   • BackgroundScanC (Truncated from BackgroundScanClient.exe to meet 15 character limit)

   • SAVCleanupServi (Truncated from SAVCleanupService.exe to meet 15 character limit)

   • SavadminService (Truncated from SavadminService.exe to meet 15 character limit)

     Note

     Ensure that in addition to registry keys with environment specific executables, ExcludeProcess registries are also created with the following as their respective value:

     ALMon.exe

     ALsvc.exe

     BackgroundScanC

     native.exe

     sav32cli.exe

     SAVCleanupServi

     SavMain.exe

     SavProgress.exe

     sdcdevcon.exe

     sdcservice.exe

     WSCClient.exe

     SavService.exe

     SavadminService

5. Restart the Commvault services for the registry to take its effect.

6. In a cluster setup repeat all the above mentioned steps on all the physical machines.
